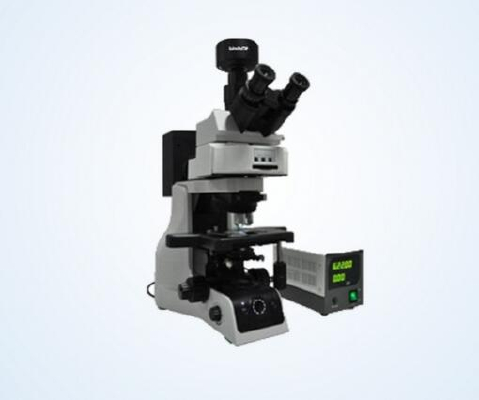

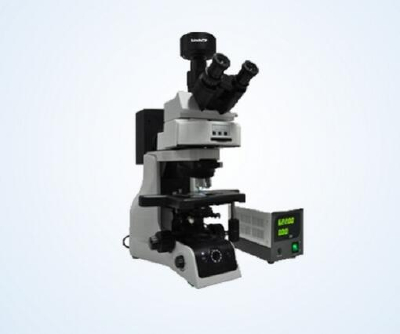

Scientific-grade fluorescence microscope MF43
MF43 is a research-grade fluorescence microscope latest developed by Mshot with excellent performance . The microscope adopts excellent quality infinity optical system and maximum fit to six fluorescence filter cubes. Meanwhile, the microscope can expand to phase contrast and dark field observation.
Features:
Trinocular tube, FN 22mm, high eyepoint, light path (100/0,50/50,0/100).
Employ ECO function for power managing.
0.001mm minimum accuracy fine and coarse focusing.
Semi apochromatic fluorescence objectives.
Swing out condenser suitable for objective from low times to high times.
Corning glass mechanical stage.
Built in daylight balance filter (LBD), decaying filter ND25,ND6.
6 hold positions epi fluorescent illumination.
100W high power Osram mercury lamp.
Advantages:
Trinocular tube can support microscope camera.
Semi apochromatic fluorescence objectives to offer excellent fluorescence imaging performance.
ECO button can automatically turn off transmitted illuminator when no operating after 5 minutes.
0.001mm super accuracy focusing to meet high quality microscopy requirement.
Corning glass stage is convenient to put in tissue slice with single hand.
12V 100W halogen lamp ensuring excellent brightness under all objectives for fluorescence
Built-in daylight balance filter LBD, brightness decaying filter ND25,ND6, fit to suitable brightness under different objectives.
Sextuple fluorescence illuminator, can install max. 5 groups fluorescence excitation groups. Automatically fit to matched filter cube even work at dark room.
Bright field observation, fluorescence observation, phase contrast observation and dark field observation available.
Benefits:
User can freely add digital camera to record image.
Wide filed of view in high clarity imaging.
User can enjoy excellent fluorescence imaging with high definition and good rendition.
ECO function provides huge convenience , save energy and lengthen the working life.
More accurate focusing system provide more accuracy information and smooth working.
Easy and convenient operating procedure save user's time.
Multiple fluorescence illumination makes it possible to observe various kind of fluorescence.
ECO function help user using microscope in safety.
- Place of Origin: China
- Brand Name: MSHOT
- Model Number: MF43
Item | specification | quantity |
MF43 Host | Include filters LBD, ND25,ND6. Coaxial coarse/fine focus system, scale value: 0.001mm, routing 36mm Has ECO function. (Do not include lamp house) | 1 |
Observation tube | Hinged trinocular observation tube, FN 22mm, high eyepoint, 30° inclined, pupil distance adjustable ranging 50-75mm, eyepiece/camera light splitting(100/0,50/50,0/100) | 2 |
Revolving nosepiece | M20.32×0.70 6 sextuple | 1 |
4X plan fluorescence objectives | NA=0.13 WD=17.15 | 1 |
10Xplan fluorescence objectives | NA=0.3 WD=7.68 | 1 |
20Xplan fluorescence objectives | NA=0.5 WD=2.1 | optional |
40Xplan fluorescence objectives | NA=0.75 WD=0.78 | 1 |
100Xplan fluorescence objectives | NA=1.3 WD=0.15 | 1 |
Right hand operating stage | Steel wire construction,1.78(X)×54(Y)mm; 1mm/div,scale value 0.1mm; | 1 |
18mm lifting range with handle tension adjustable; | ||
Corning Gorilla glass ; | ||
Outer Size: 302x152mm (inside 190x152mm) | ||
Swing-out condensor | NA 0.9/0.25 | 1 |
100W halogen lamp | 12V 100W halogen lamp | 1 |
Immersion oil | Immersion oil 8cc | 1 |
Epi fluorescent illuminator | 6-position mirror unit turret, kohler illumination system (include lamp house and power box ) | 1 |
B excitation group | EF475/40nm, DM500LP,BF 535/45nm | 1 |
G excitation group | EF525/45nm, DM560LP,BF 595/60nm | 1 |
U excitation group | EF365/40nm, DM400LP,BF 420LP | 1 |
Empty excittion group | optional : Φ25 filter,dichroic mirror 26*38*1mm; | |
Mercury lamp | Osram HBO 100W(20V,5A) | 1 |
Allen wrench | 2 | |
power line | 1 |
